Hongda Style Supermarket Shelf
Model: FDKL-S0425
Supermarket Shelf Features:
- Pitch 25mm, more flexible for adjustment.
- Heavy loading and economical.
- Hidden light system, better display of products.

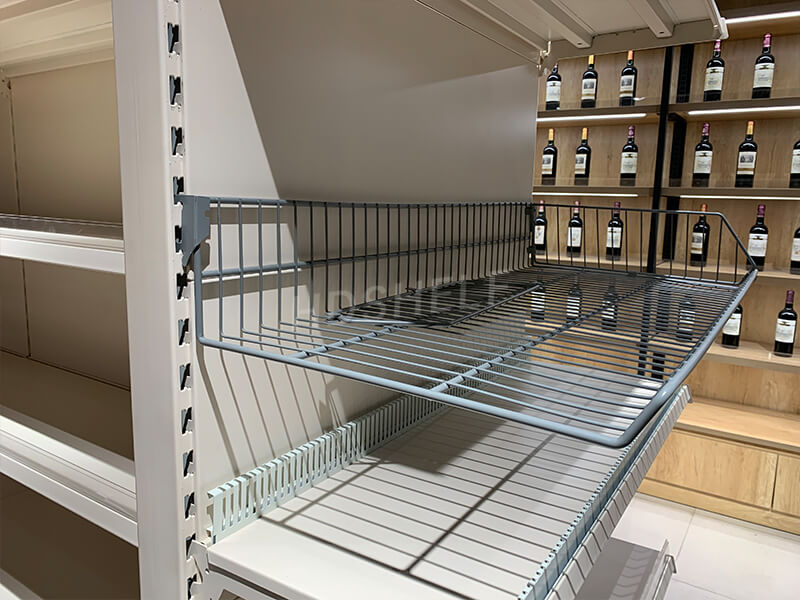

- Various relevant accessories, such as hooks, fences, etc.
Product Description

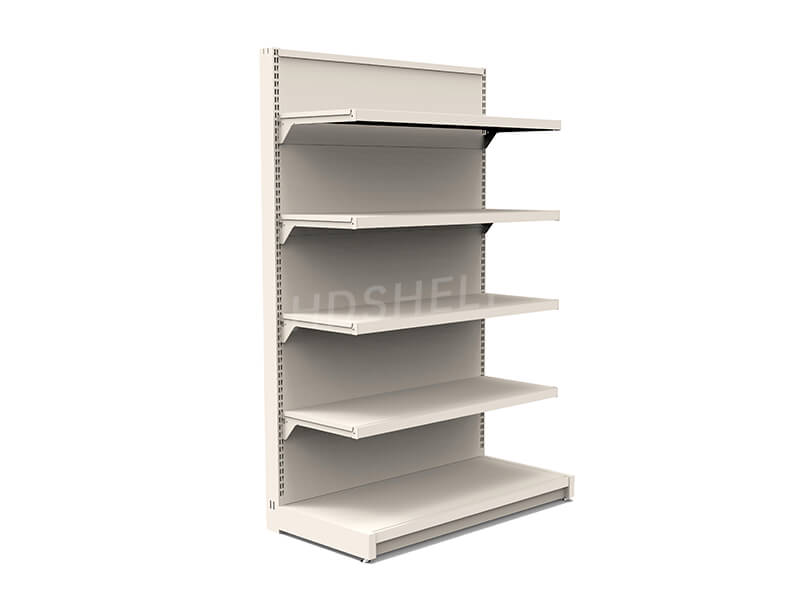

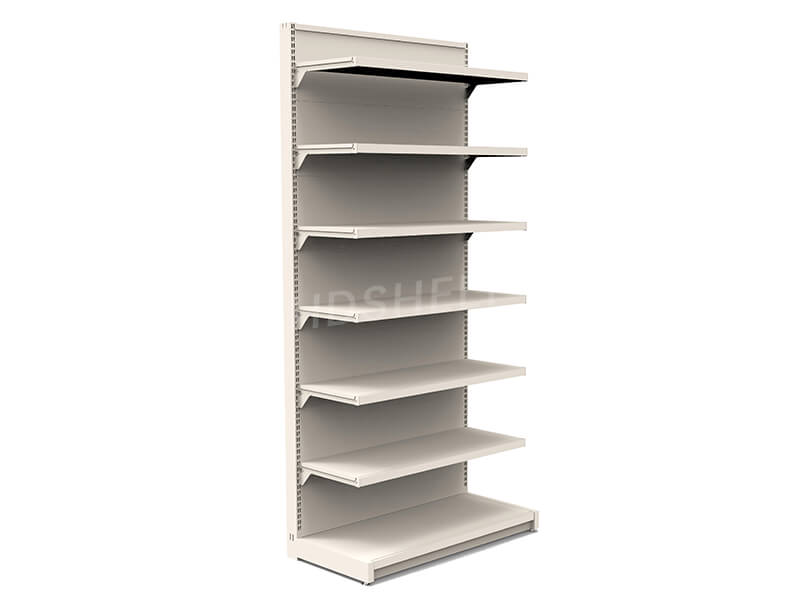

Hongda Style Supermarket Shelf
Hongda supermarket shelves are widely used in various supermarkets, stores, grocery stores, etc. Our supermarket shelves are strictly in accordance with the quality requirements, with fine workmanship and first-class quality, to provide you with the best pre-sales and after-sales services, and relieve your worries during the use of the shelves. Hongda- a professional shelf manufacturer, sells various supermarket shelves with factory prices, and at the same time provides you with a complete turnkey service, designing and manufacturing exclusive shelves according to your requirements.
If you are interested in our medium duty storage rack, you can contact us via email: info@hdshelf.com or whatsApp: +86 13962497718.
Parameter
| No,Basic Components/lmage | Dimensions (mm) | ||
|---|---|---|---|
| 1. Upright |  | Cross Sections | 30*70 |
| Height | 900-2800 | ||
| Material Thickness | 2 | ||
| 2. Plain Back Panel |  | Length | 579/879/979/1179 |
| Height | 200/300 | ||
| Material Thickness | 0.5/0.6/0.8 | ||
| 3. Base Platform |  | Length | 560/860/960/1160 |
| Width | 395/445 | ||
| Material Thickness | 0.8/1.0 | ||
| 4. Shelf |  | Length | 590/890/990/1190 |
| Width | 318/368/418 | ||
| Material Thickness | 0.7/0.8 | ||
| 5. Bracket |  | Length | 318/368/418 |
| Material Thickness | 2.5/3.0 | ||
| 6. Top Cover |  | Length | 562/862/962/1162 |
| Width | 78 | ||
| Material Thickness | 1.5/2.0 | ||
| 7. End Top Cover |  | Length | 562/862/962/1162 |
| Width | 78 | ||
| Material Thickness | 1.5/2.0 | ||
